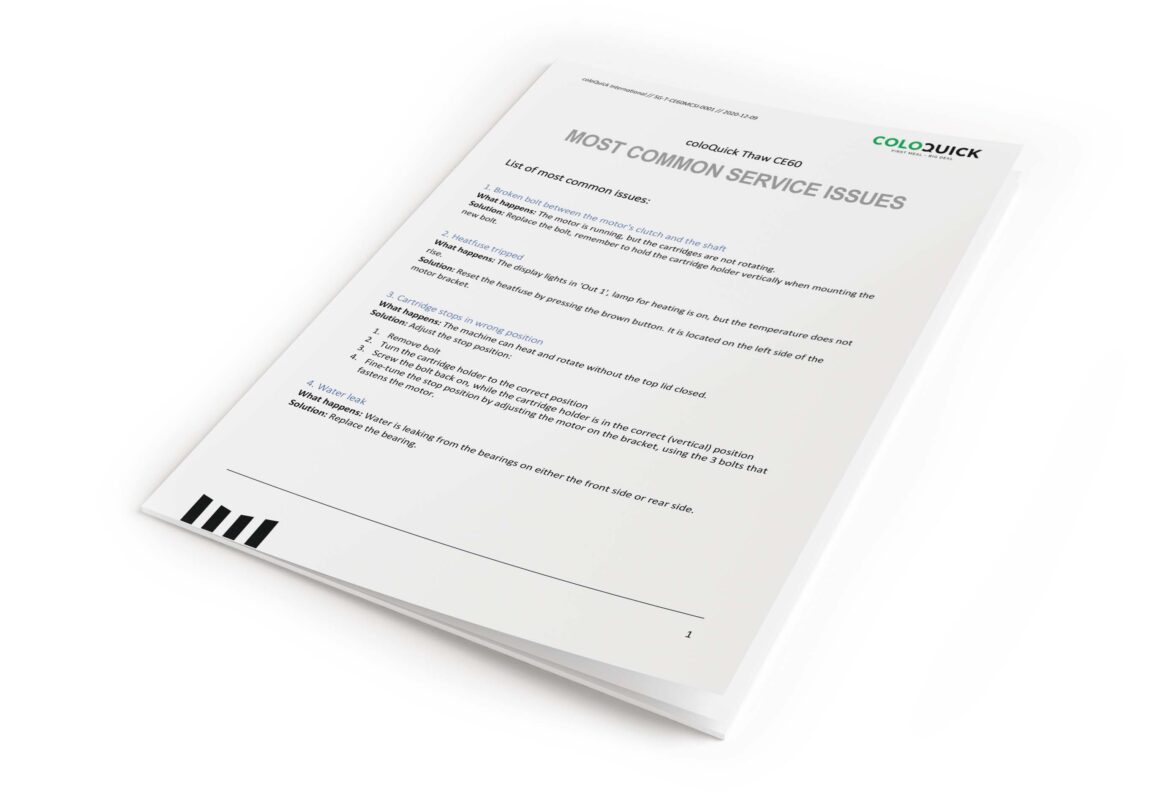

Most common service issues

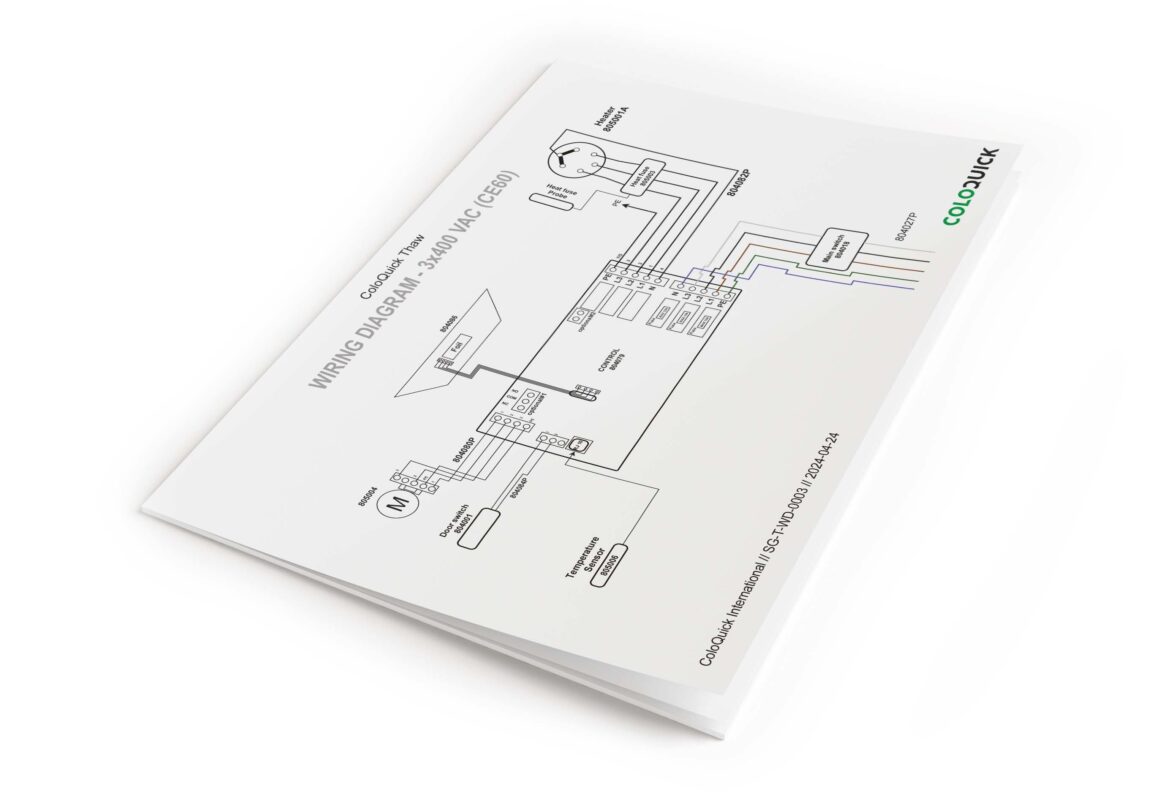

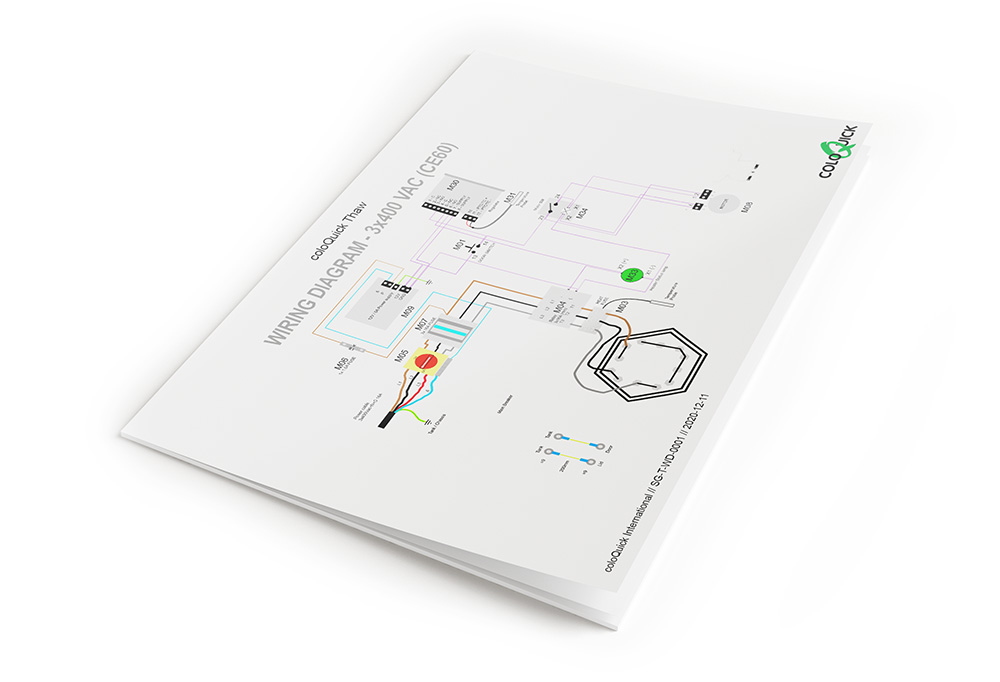

Wiring diagram

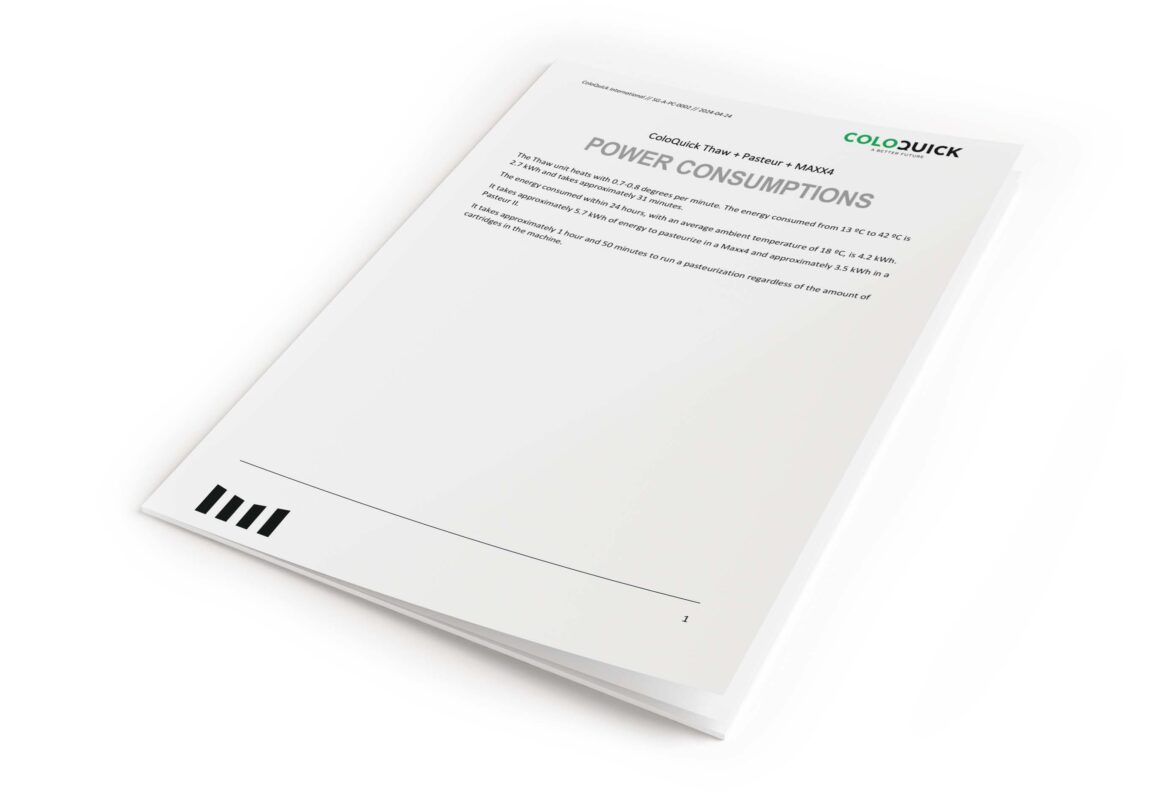

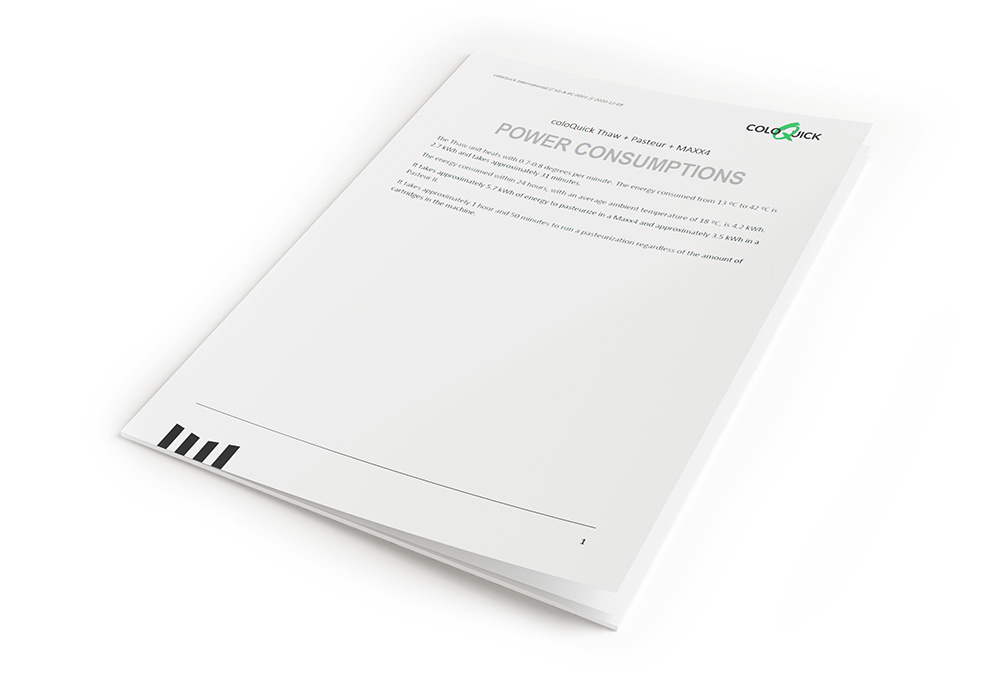

Power consumption

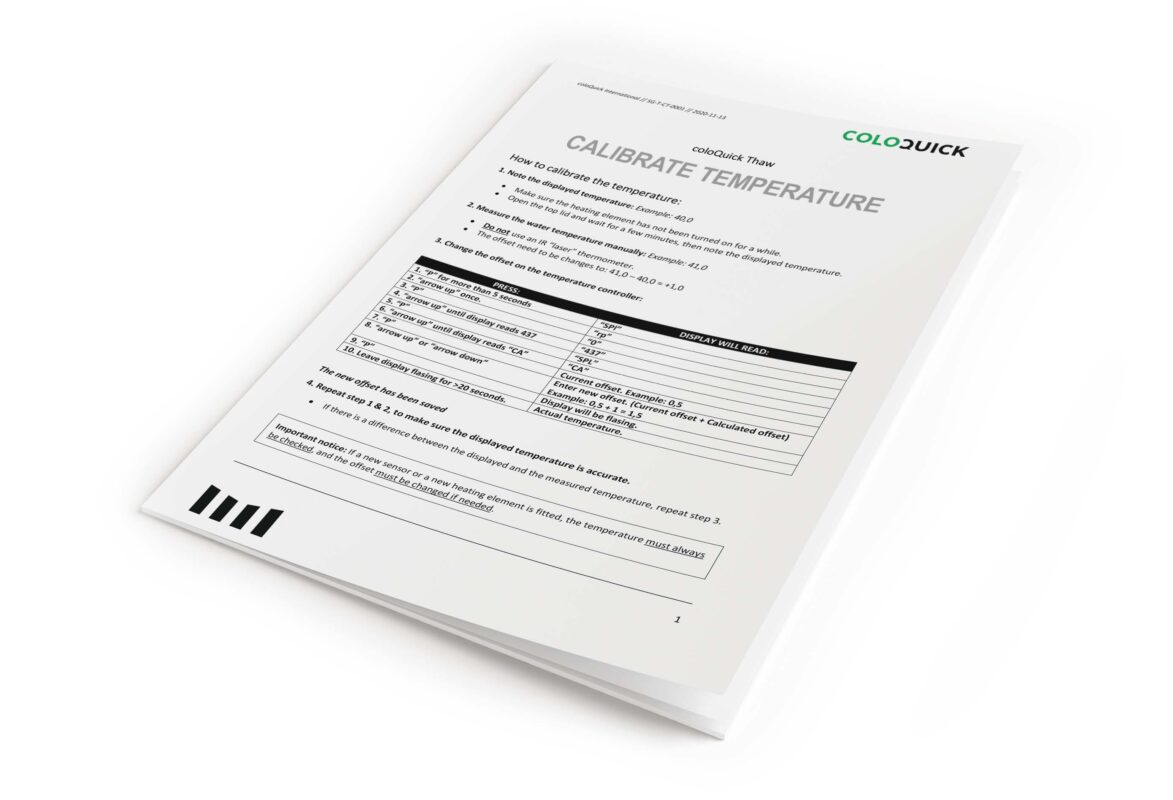

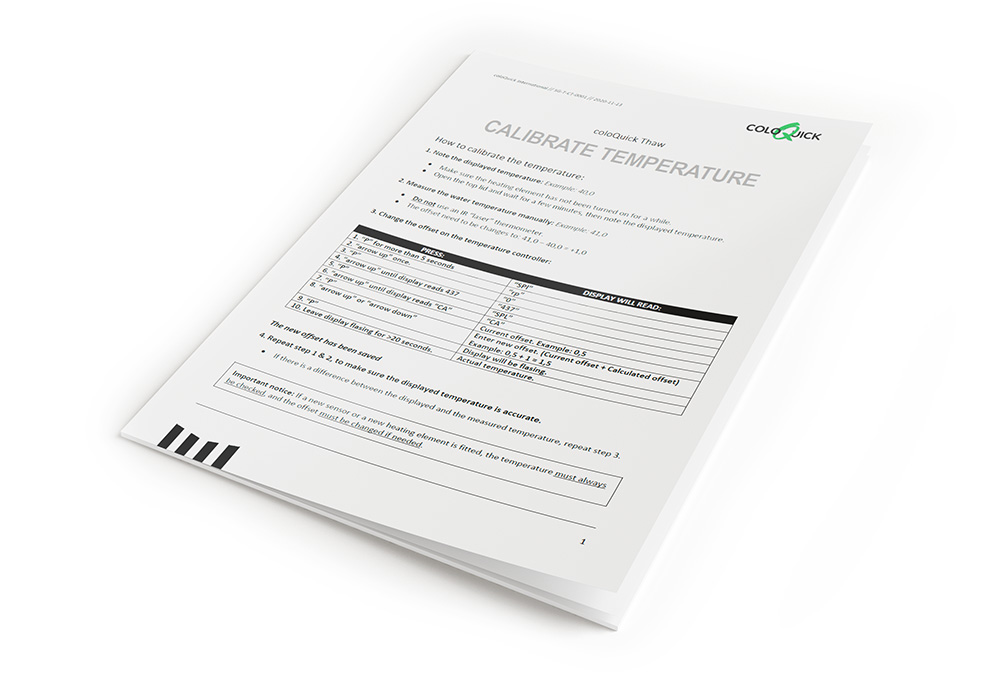

Calibrate temperature


THAW ASSEMBLY GUIDES

Assembly: Thaw unit


THAW USER MANUALS

User Manual
THAW

Old User Manual
[DA] [EN] [DE] [FR] [ES] [RU]

Old SERVICE Manual
[DA] [EN] [DE]

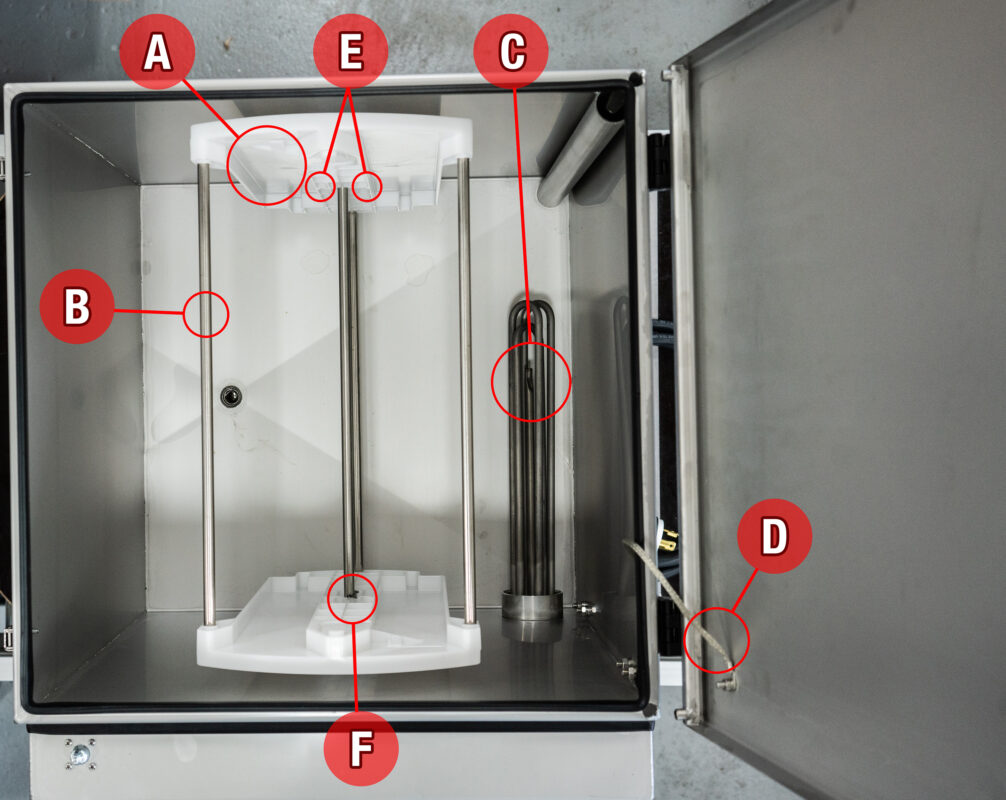

INSIDE THAW WATER BATH

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A+B: Complete plastic cartridge holder: #8020055

A: End of plastic cartridge holder: #807406

B: Shaft for cartridge holder: #507105

C: Heating element 3x230V, 6kW: #805001A

D: Grounding cable: #805029

E: Pin for cartridge holder: #807230

F: Hairpin A4 2mm: #807231

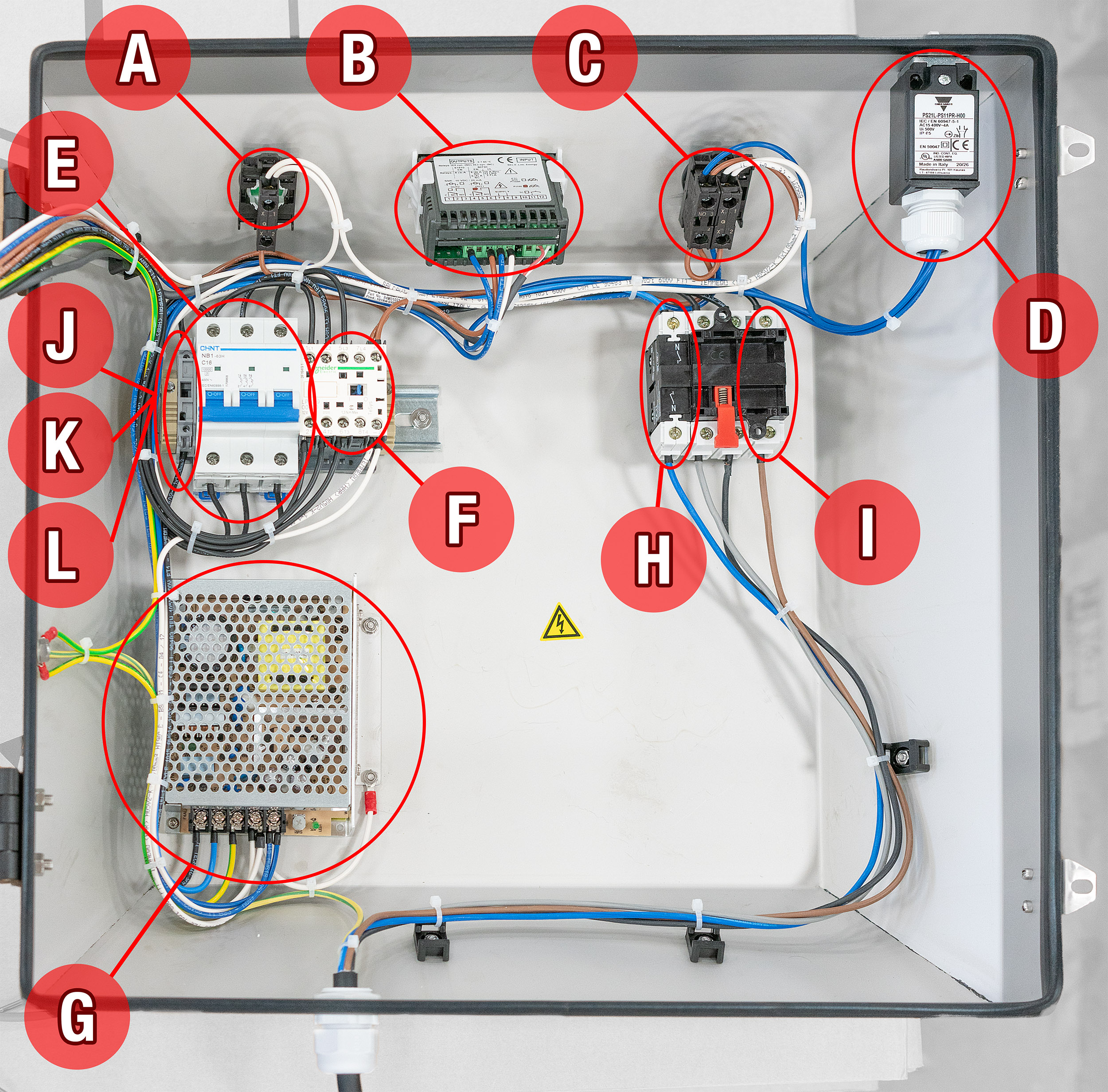

INSIDE THAW LID [EU version]

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Control lamp, 12V DC: #802037

B: Temperature controller, incl. gasket and locks: #804008

C: Motor switch, complete: #802050

D: Lid switch: #804001

E: Resettable fuse, 16A/3P: #804022

F: Contactor 20A/4P 12VDC: #804020

G: PSU 12V / 6A 88-264V: #804003

H: Switch element for neutral wire: #804019

I: Main switch 40A/3P: #804018

J: Fuse, glass, 1.6A 5x20mm: #804024

K: Fuse cover, 5x20mm: #804023

L: Front for fuse cover: #804025

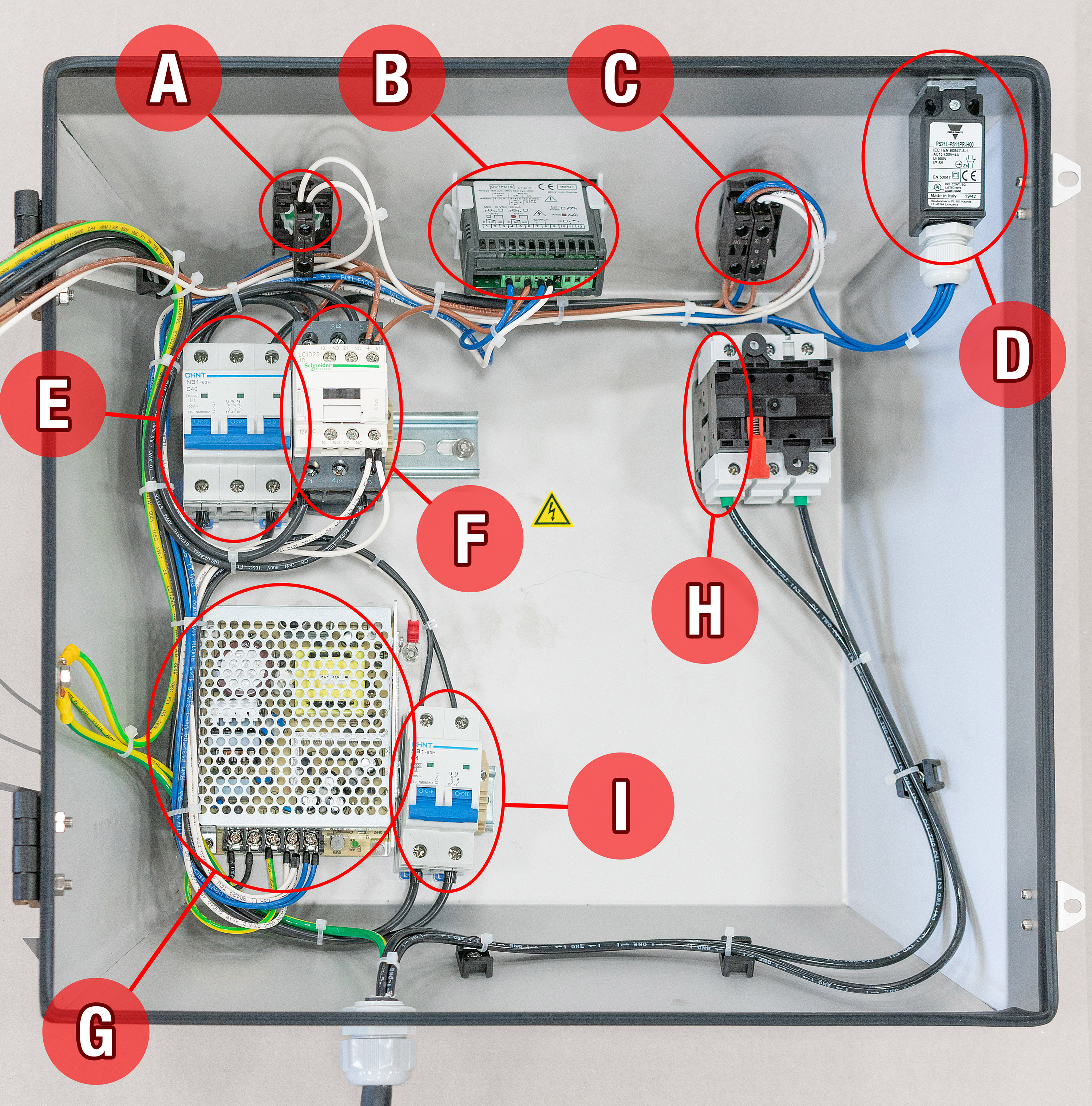

INSIDE THAW LID [US version]

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Control lamp, 12V DC: #802037

B: Temperature controller, incl. gasket and locks: #804008

C: Motor switch, complete: #802050

D: Lid switch: #804001

E: Resettable fuse, 40AC/3P: #804030

F: Contactor 40A/3P 12VDC: #804029

G: PSU 12V / 6A 88-264V: #804003

H: Main switch 40A/3P: #804018

I: Resettable fuse, 4AC/2P: #804031

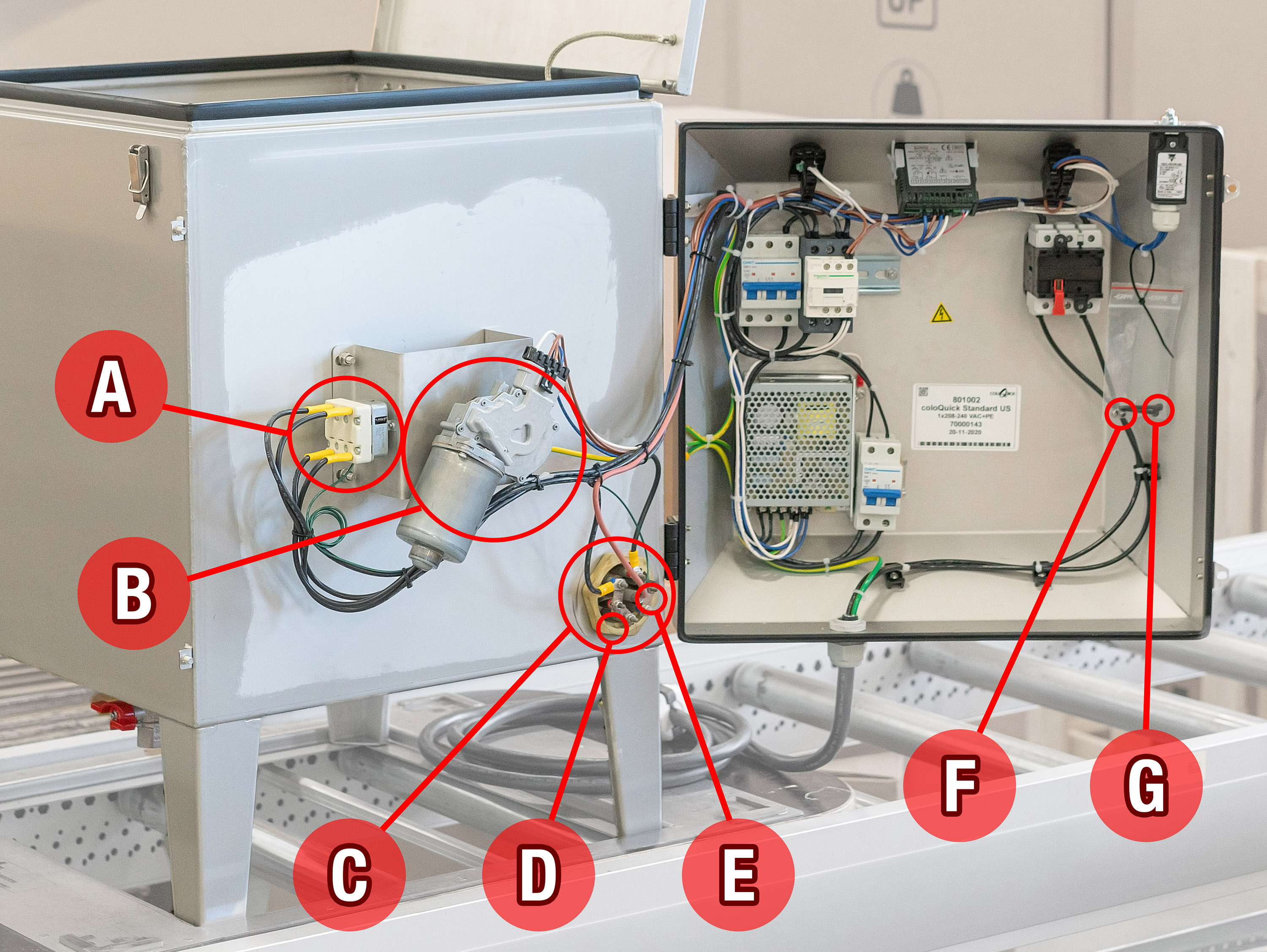

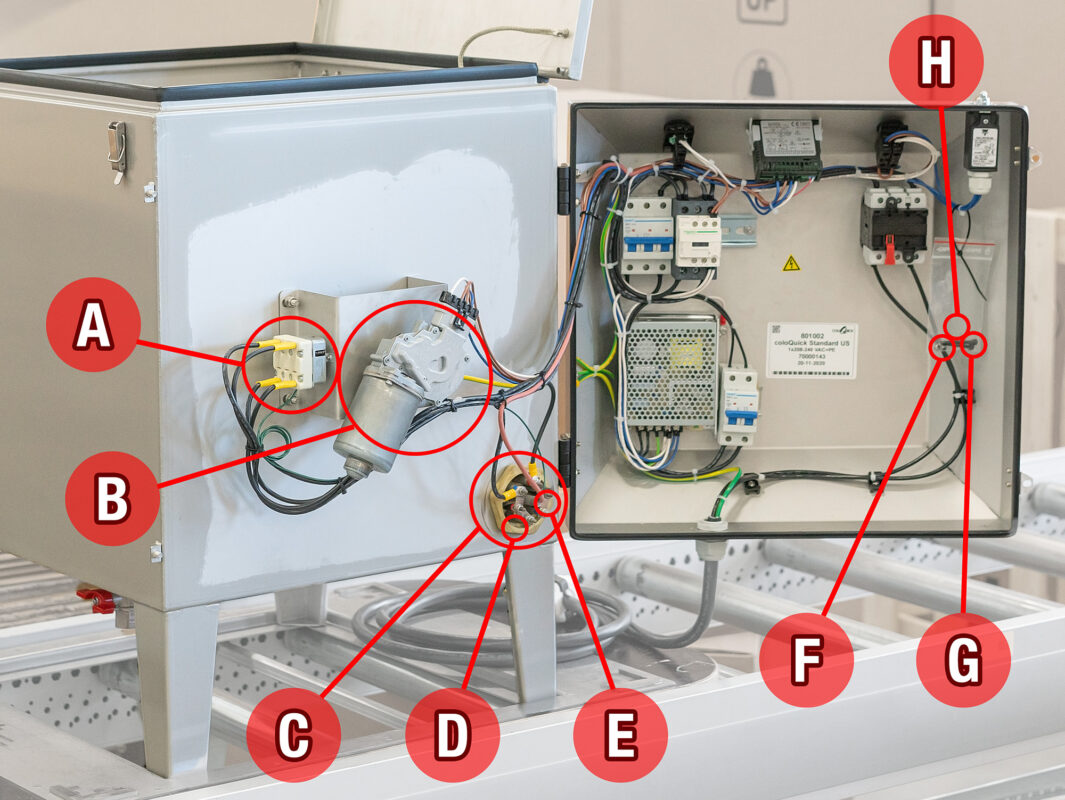

INSIDE THAW FRONT

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Heat fuse 95C: #805003

B: Gear motor: #805004

C: Heating element 3x230V, 6kW: #805001A

D: Fiber gasket for heating element: #807001

E: Bridge for heating element: #805002A

F: Lock nut M4: #807222

G: Bolt M4x40: #807215

H: Fuse, glass, 1.6A, 5x20mm: #804024

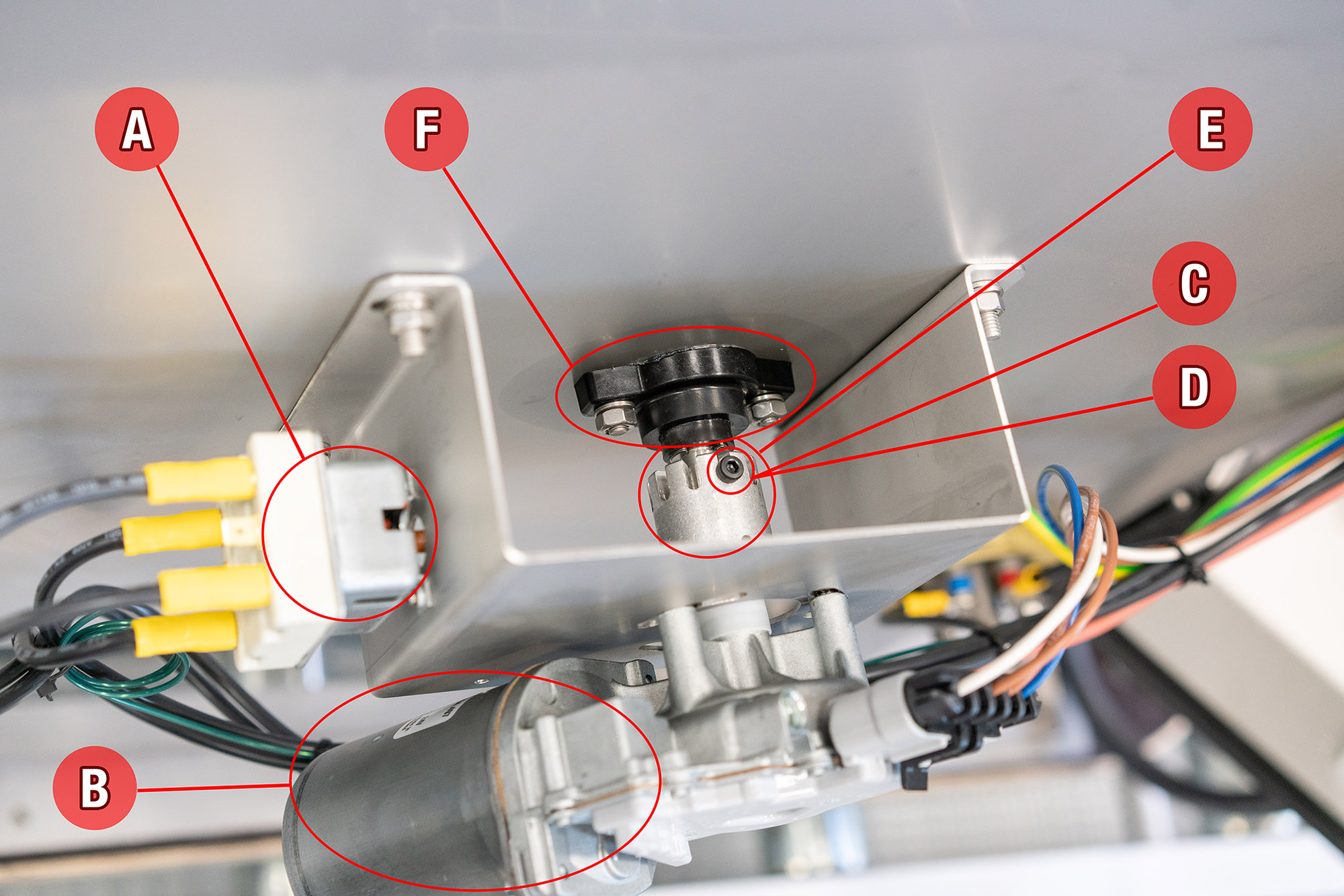

INSIDE THAW FRONT TOP

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Heat fuse 95C: #805003

B: Gear motor: #805004

C: Bolt M4x40: #807215

D: Lock nut M4: #807222

E: Clutch for gear motor: #807103A

F: Bearing complete: #803101

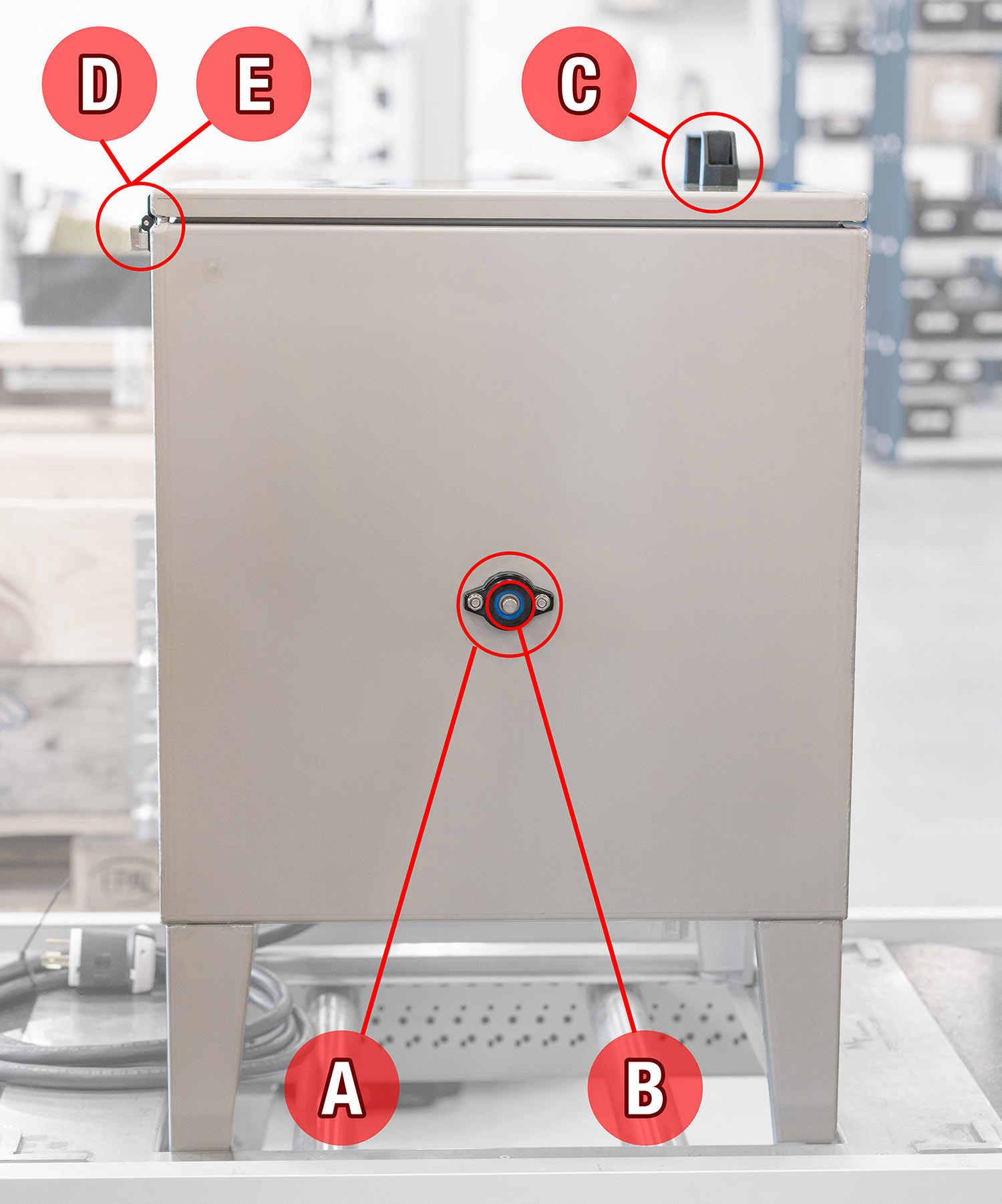

THAW LEFT SIDE

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Bearing complete: #803101

B: Center shaft for gear motor: #807102

C: Handle for hatch: #807405

D: Hinge for hatch: #807006

E: Stop-bracket for upper hatch: #807104C

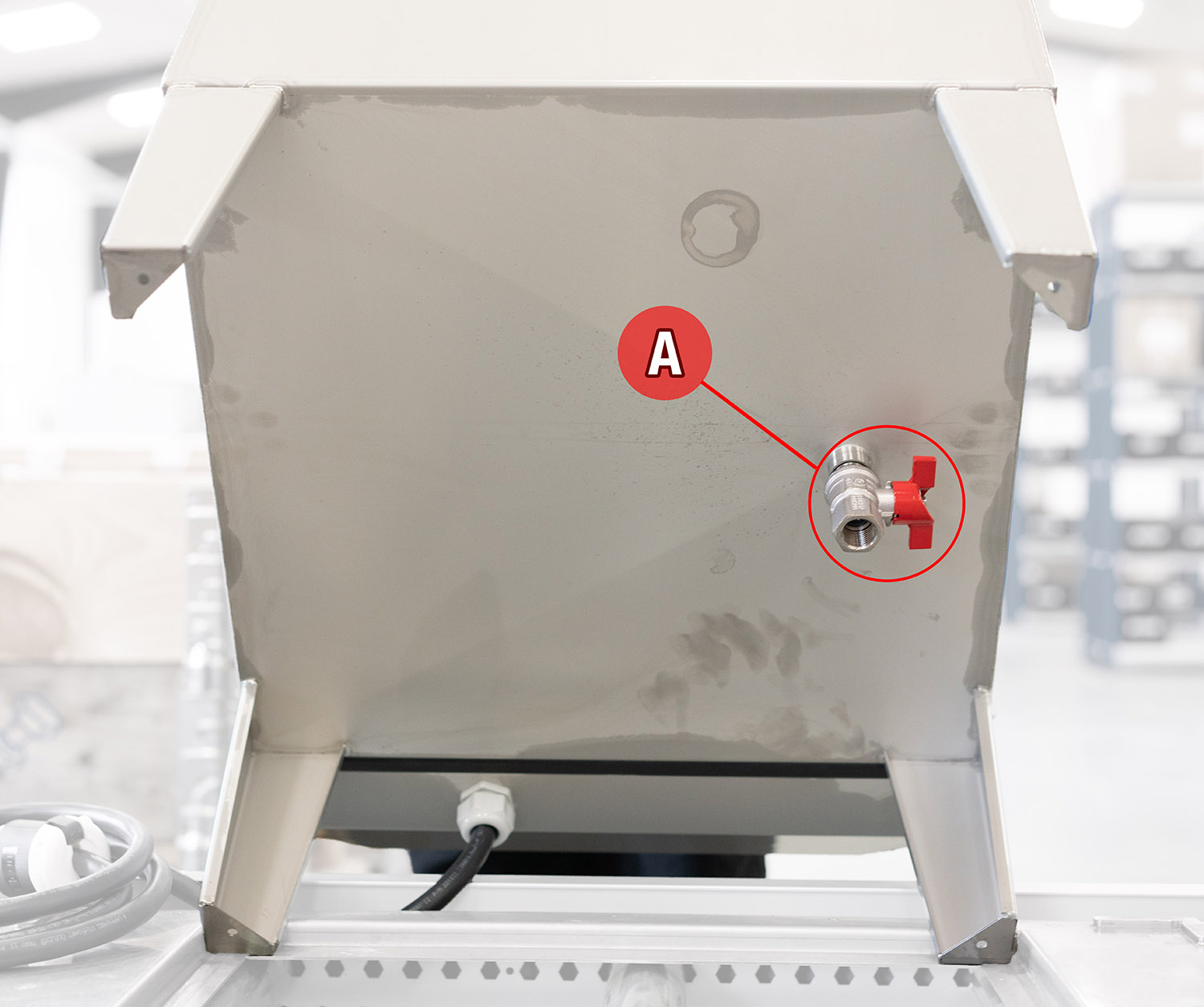

THAW BOTTOM

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Ball valve 1/2″: #807304
