THAW 1.5 SERVICE GUIDES

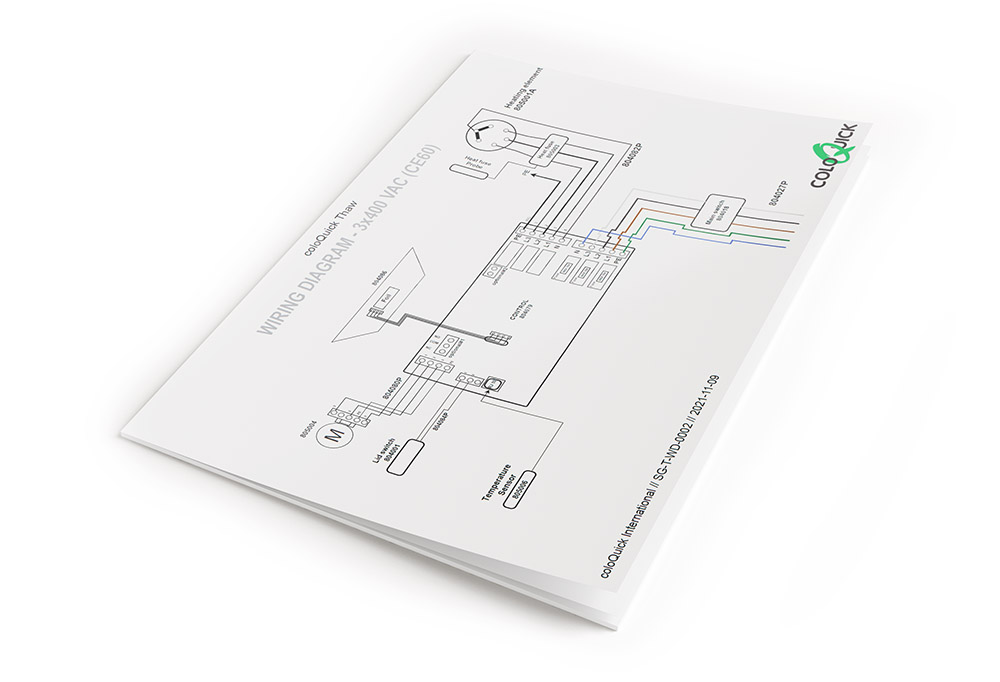

THAW 1.5 WIRING DIAGRAM

POWER CONSUMPTIONS

HEATING ELEMENT


THAW 1.5 ASSEMBLY GUIDES

Assembly: Thaw 1.5 unit


THAW 1.5 USER MANUALS


DOWNLOAD SOFTWARE

VERSION 1.12


INSTRUCTION VIDEOS

INTRODUCTION VIDEO FOR
COLOQUICK THAW 1.5

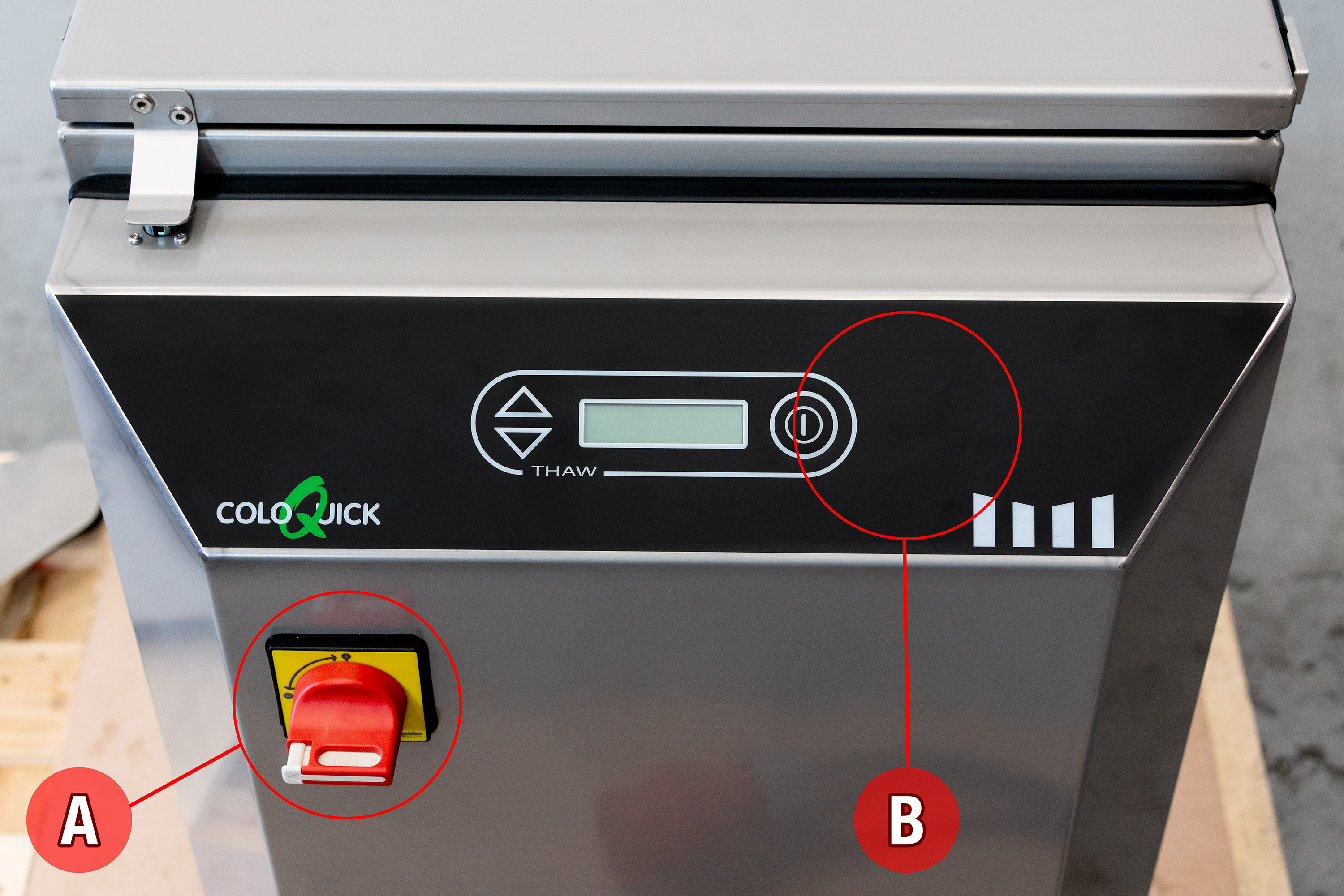

THAW 1.5 OUTSIDE LID

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Main switch 40A/ 3P: #804018

B: Transfer panel for coloQuick Thaw 1.5: #804086

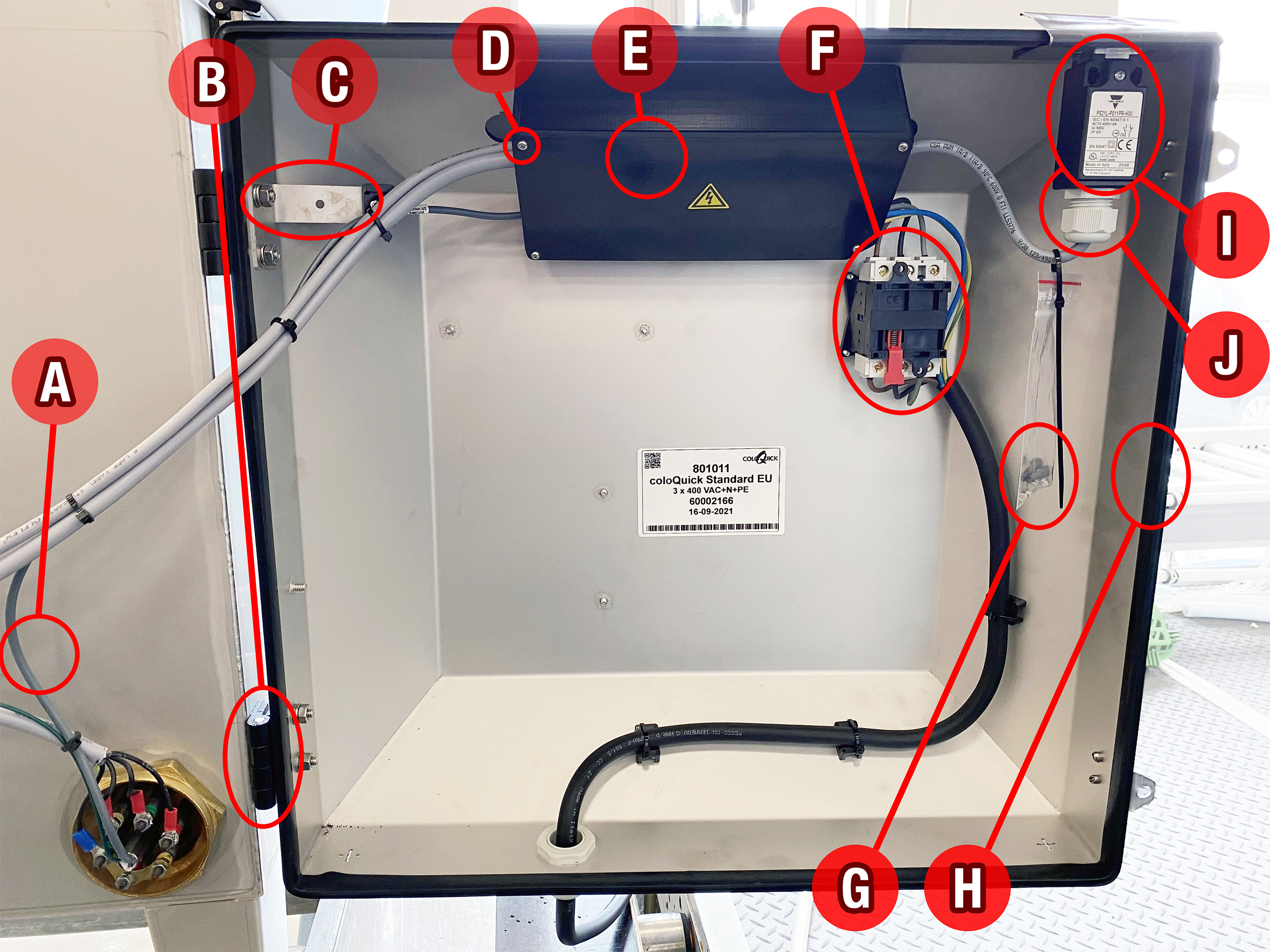

THAW 1.5 INSIDE LID

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Digital temperature sensor: #805006

B: Hinge for door: #807007

C: Cable bracket top: #806005

D: Screw 2.9×13: #807216

E: Complete control box: #804058-2

F: Main switch 40A/ 3P: #804018

G: Lock nut M4 for 807215: #807222 / Bolt M4x40: #807215 / Glass fuses 250V, 10A, 5×20: #804085

H: Rubber seal: #807002

I: Lid switch: #804001

J: PG 13.5 for Lid switch: #804002

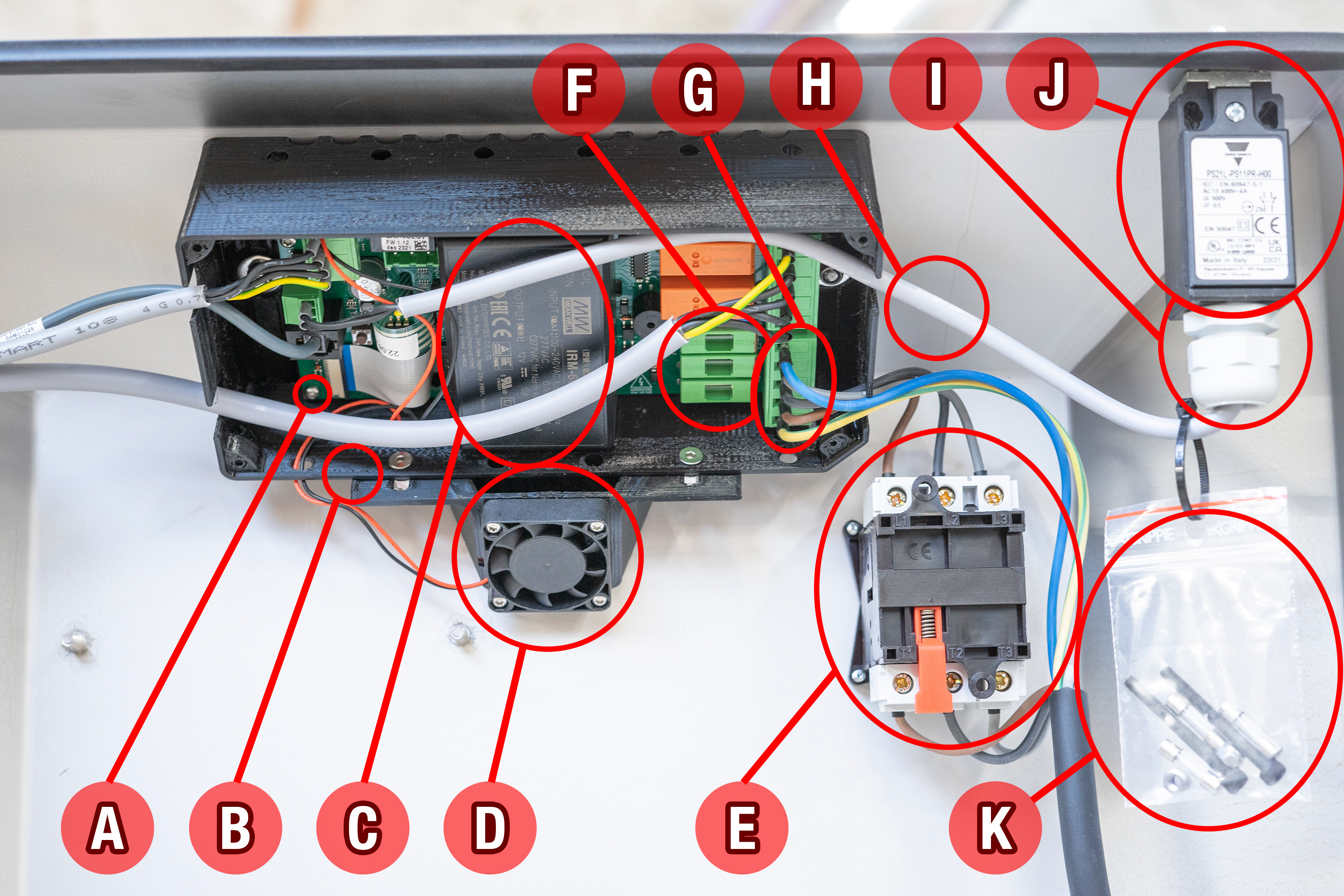

THAW 1.5 INSIDE LID – TOP

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Screw 2.9×13: #807216

B: Complete control box: #804058-2

C: Controller for coloQuick: #804079

D: Dehumidifier for Thaw 1.5: #804059

E: Main switch 40A/ 3P: #804018

F: Glass fuses 250V, 10A, 5×20: #804085

G: Cable for connection to main switch: #804027P

H: Cable for lid switch with plug: #804084P

I: PG 13.5 for Lid switch: #804002

J: Lid switch: #804001

K: Lock nut M4 for 807215: #807222 / Bolt M4x40: #807215 / Glass fuses 250V, 10A, 5×20: #804085

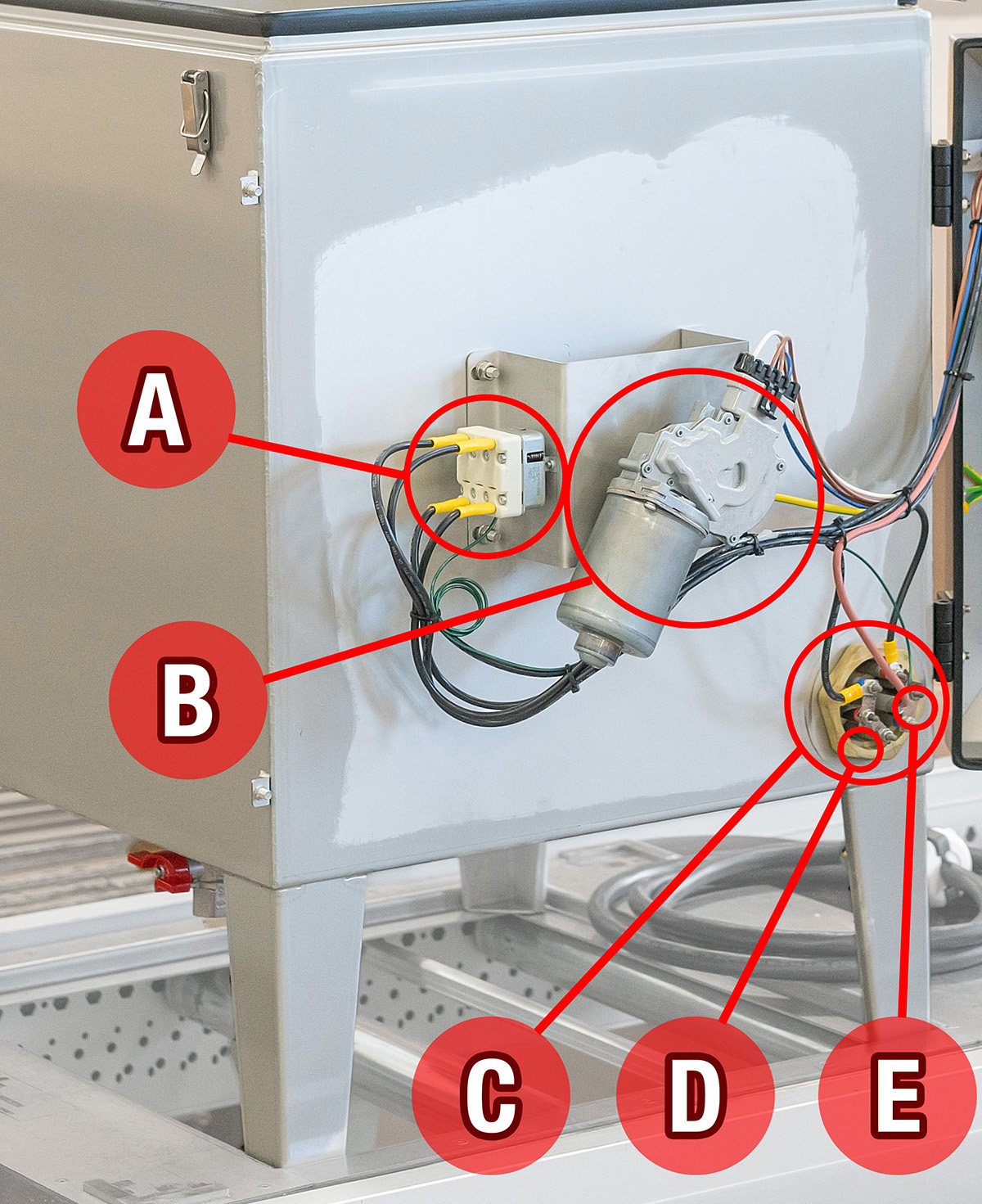

THAW 1.5 INSIDE FRONT

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Heat fuse 95C: #805003

B: Gear motor: #805004

C: Heating element 3x230V, 6kW: #805001A

D: Fiber gasket for heating element: #807001

E: Bridge for heating element: #805002A

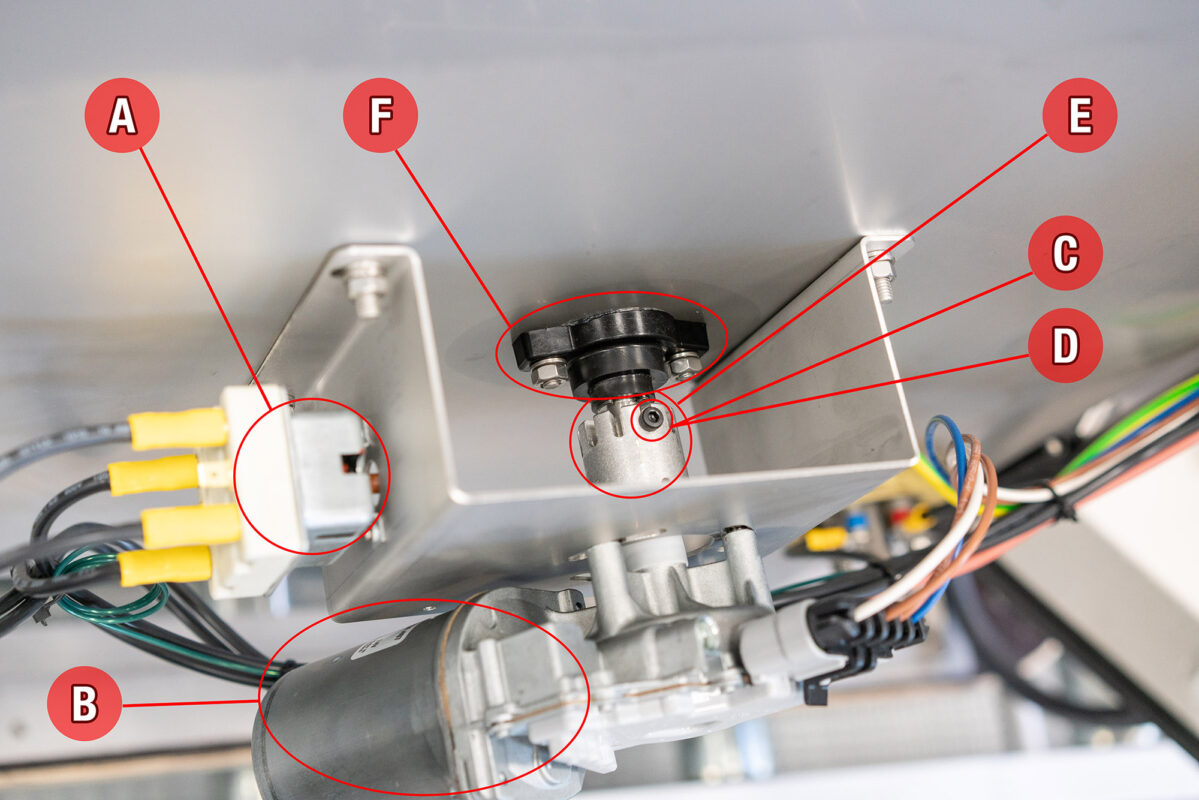

THAW 1.5 INSIDE FRONT – TOP

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Heat fuse 95C: #805003

B: Gear motor: #805004

C: Bolt M4x40: #807215

D: Lock nut M4: #807222

E: Clutch for gear motor: #807103A

F: Bearing complete: #803101

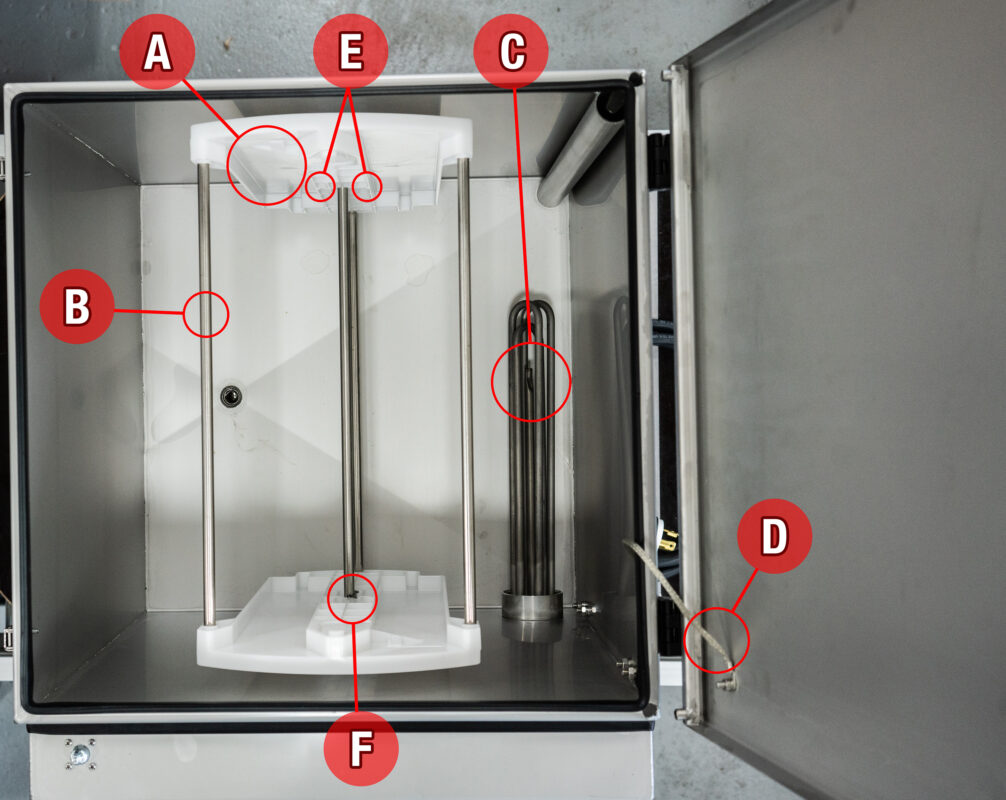

INSIDE THAW 1.5 WATER BATH

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A+B: Complete plastic cartridge holder: #8020055

A: End of plastic cartridge holder: #807406

B: Shaft for cartridge holder: #507105

C: Heating element 3x230V, 6kW: #805001A

D: Grounding cable: #805029

E: Pin for cartridge holder: #807230

F: Hairpin A4 2mm: #807231

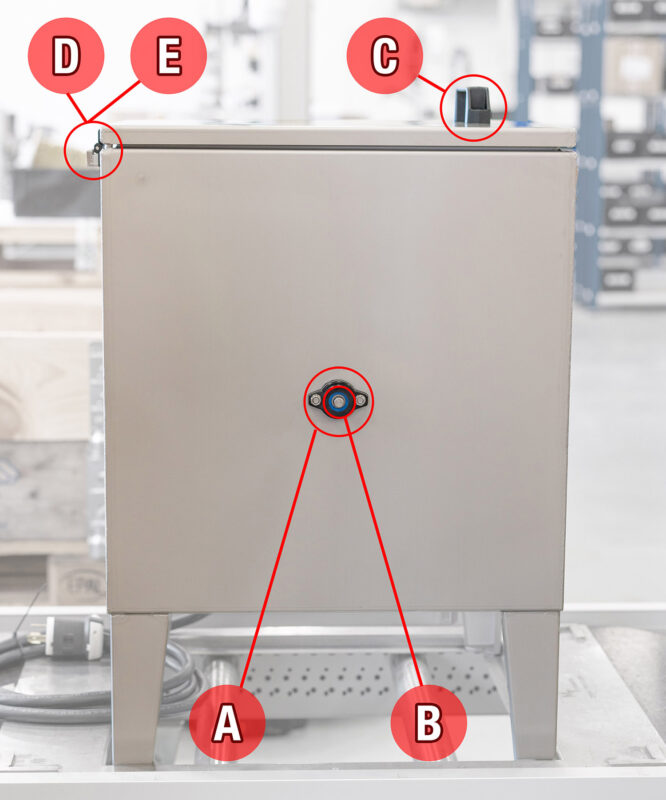

THAW 1.5 LEFT SIDE

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Bearing complete: #803101

B: Center shaft for gear motor: #807102

C: Handle for hatch: #807405

D: Hinge for hatch: #807006

E: Stop-bracket for upper hatch: #807104C

THAW 1.5 BOTTOM

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

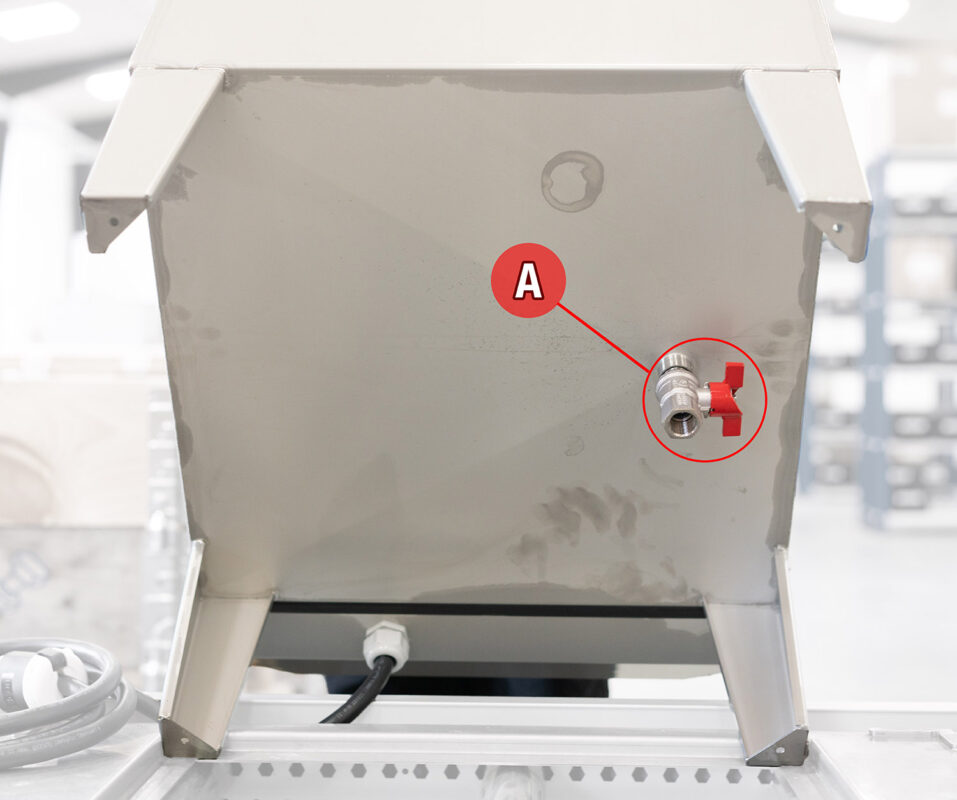

A: Ball valve 1/2″: #807304
