MAXX4 SERVICE GUIDES

Standard program settings

Power consumption

How to update the software

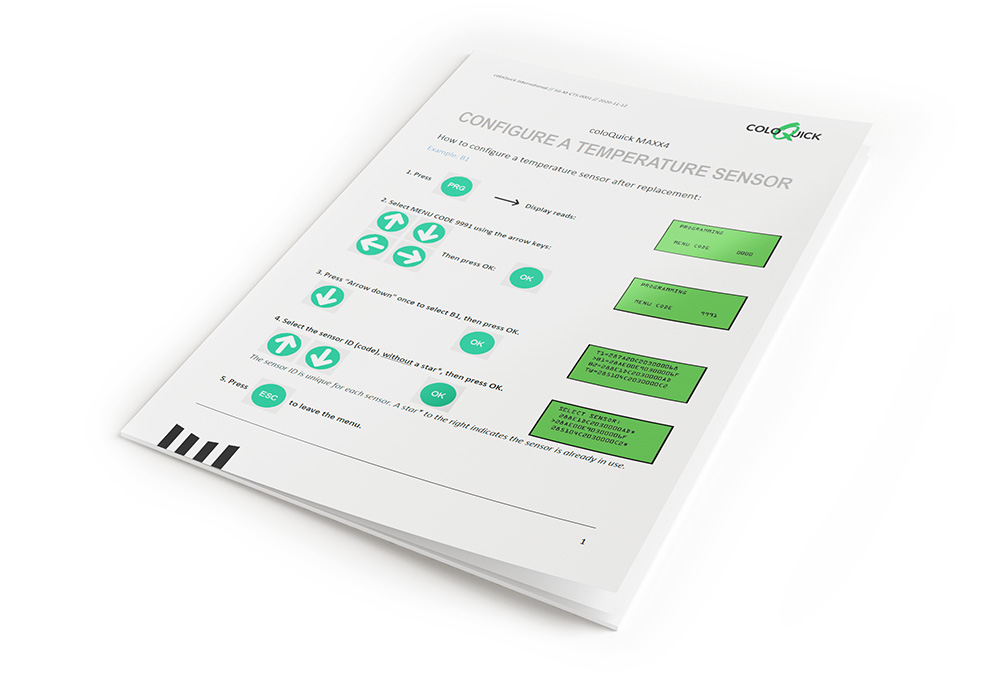

Configure Temperature Sensor

Hot water assisted heating

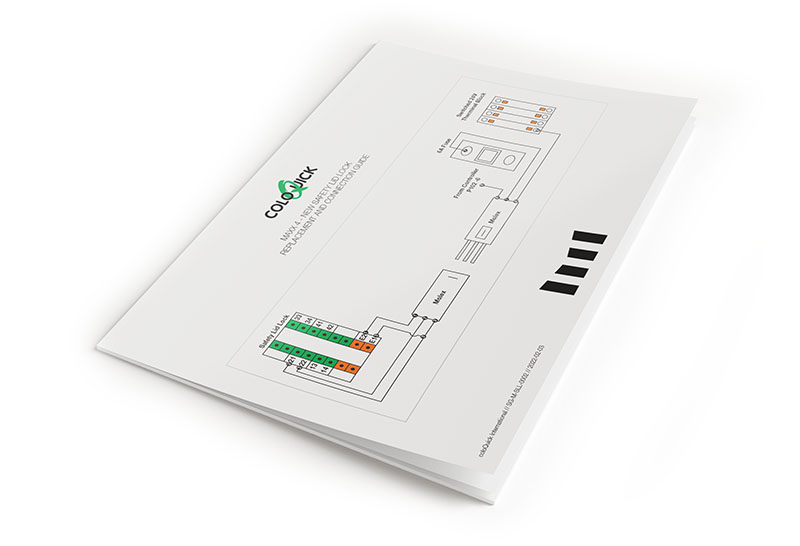

Safety Lid Lock

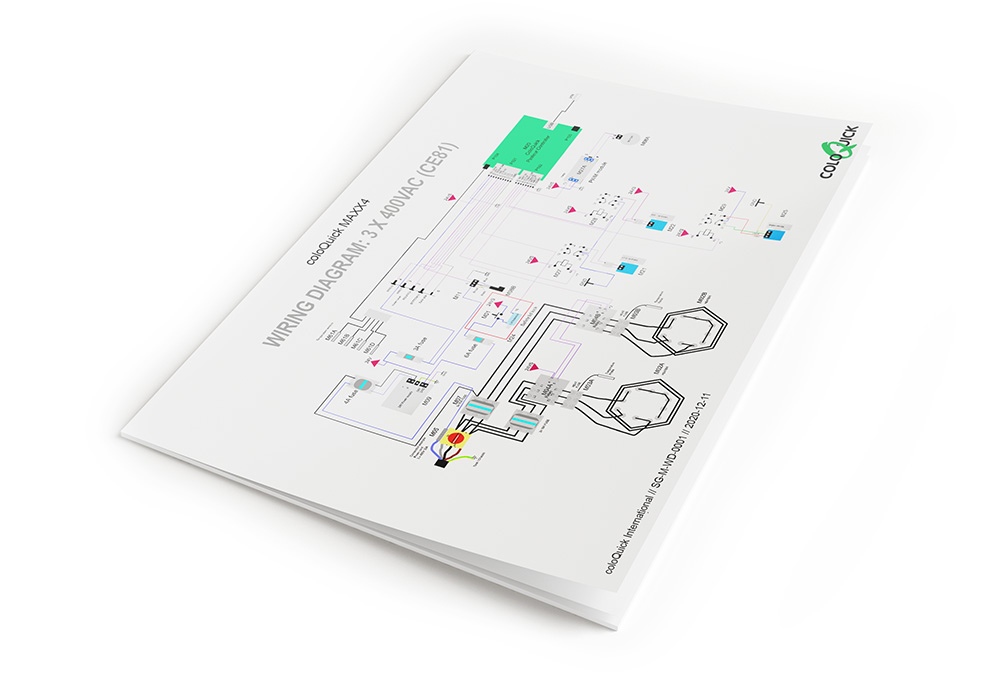

Wiring diagram

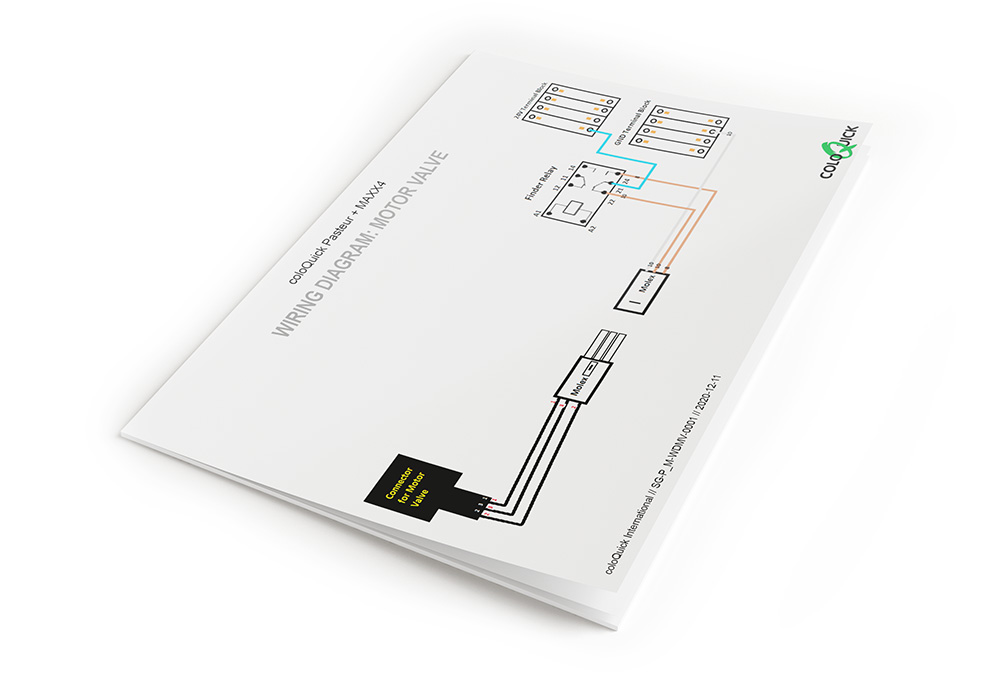

Wiring diagram: Motor valve

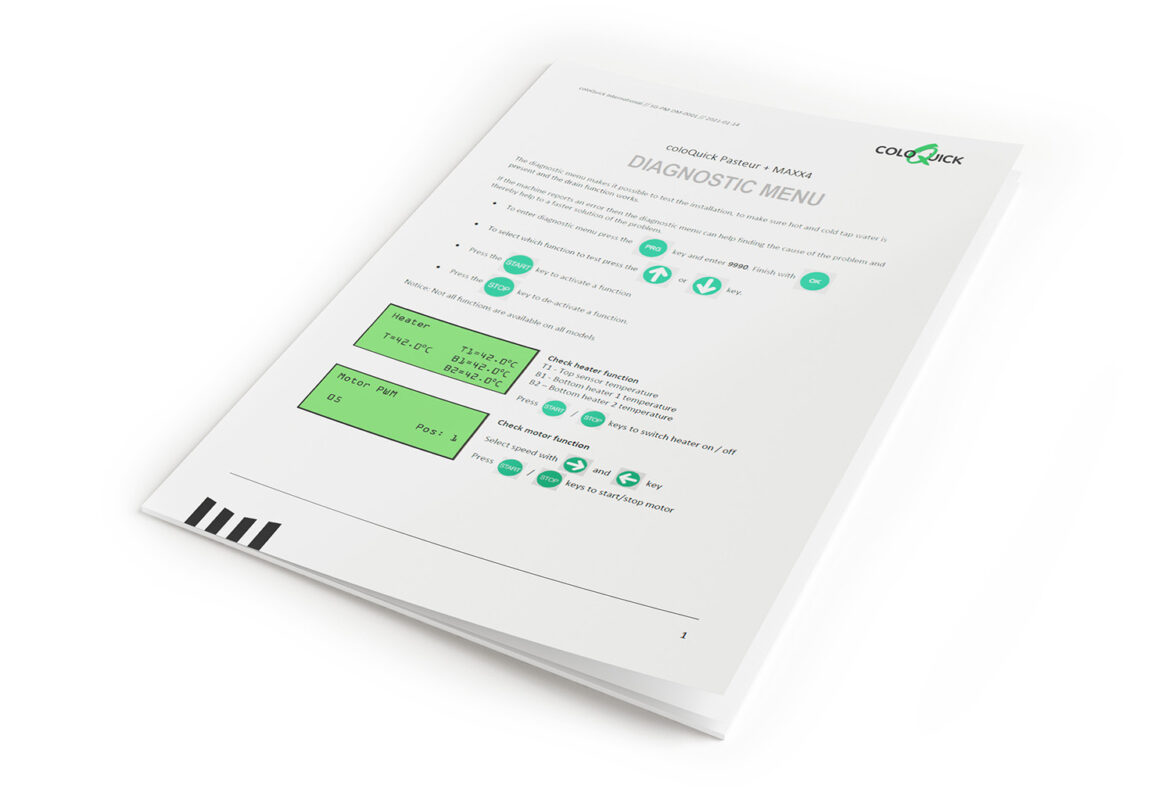

DIAGNOSTIC MENU

SILICONE APPLICATION

HEATING ELEMENT


ERROR CODES

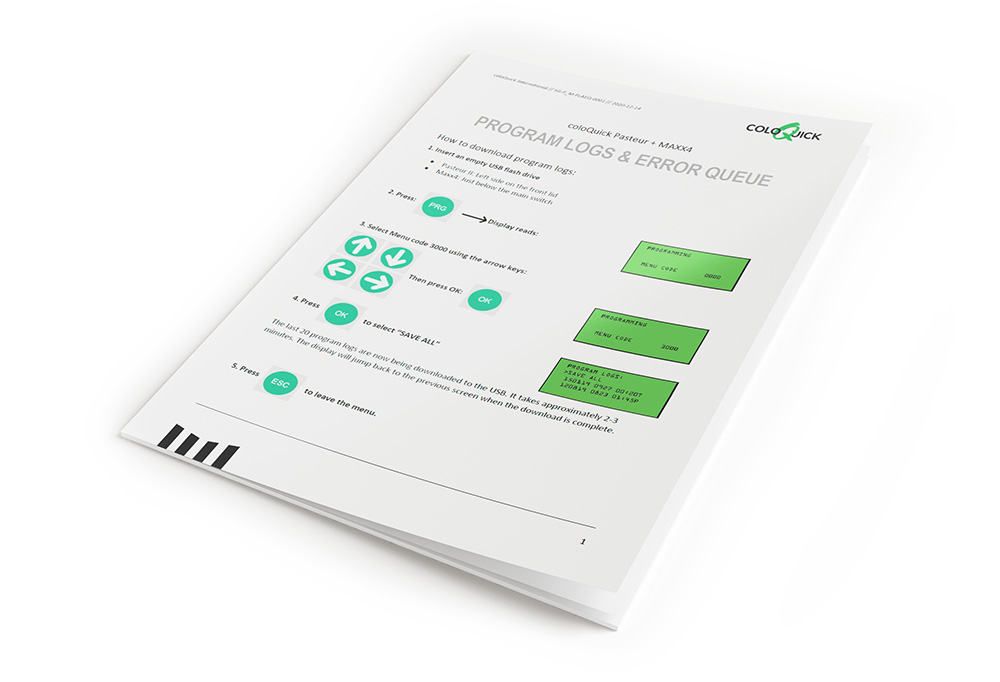

Program logs and error queues

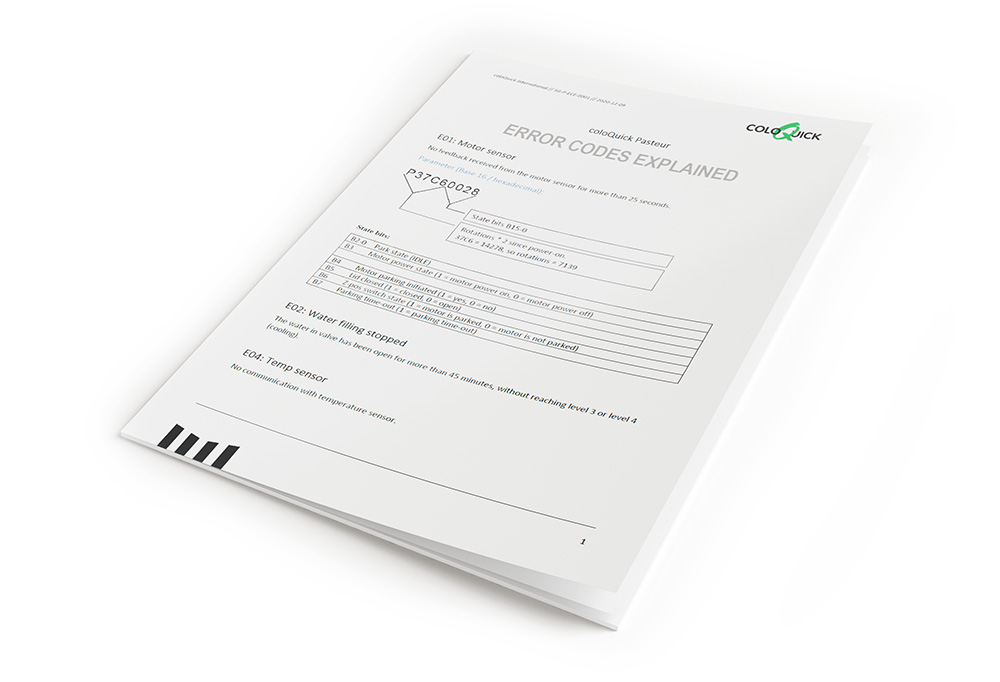

Error codes explained


ASSEMBLY GUIDES

ASSEMBLY: MAXX4

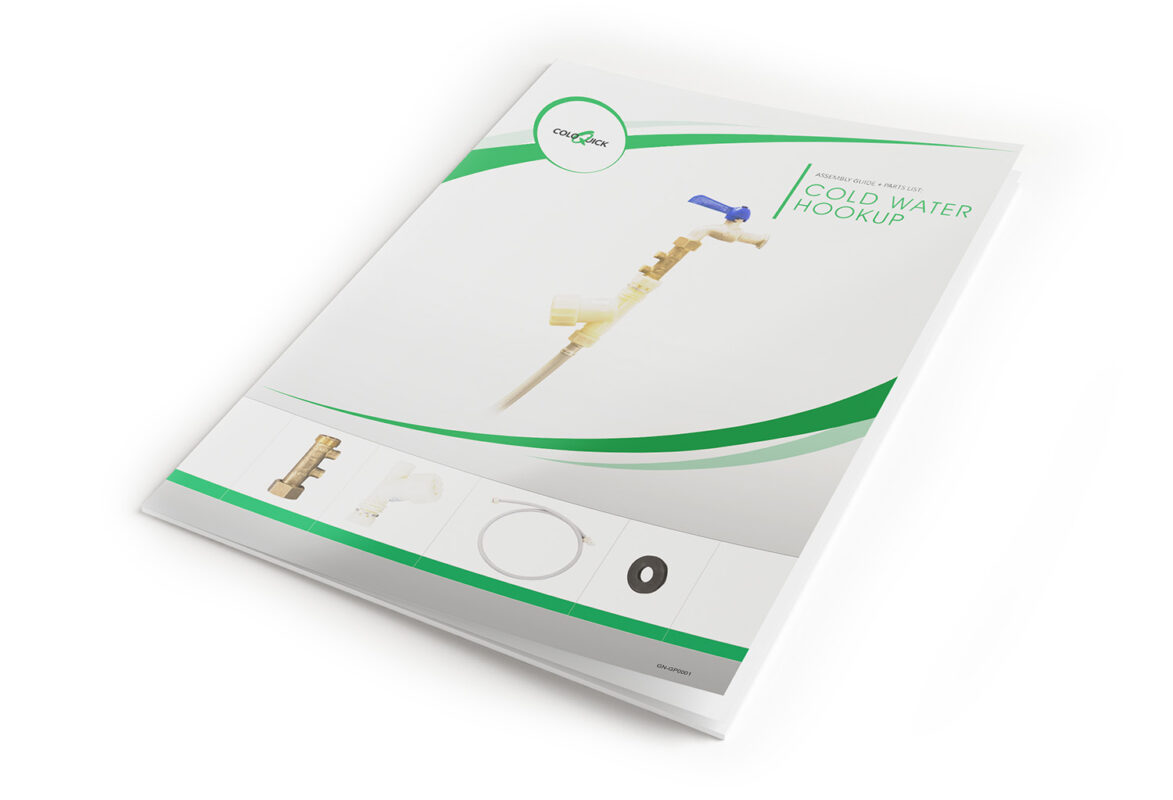

ASSEMBLY: COLD WATER HOOKUP


USER MANUALS

USER MANUAL
PASTEUR/MAXX4

OLD USER MANUAL
[DA] [EN] [DE] [FR] [ES] [RU]


DOWNLOAD SOFTWARE

VERSION 2.47A


INSTRUCTION VIDEOS

MAXX4 software update:


INSIDE THAW WATER BATH

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Level sensor: #805014

B: Housing for level sensor: #805012

C+I: Complete plastic cartridge holder: #8020055

C: End of plastic cartridge holder: #807406

D: Center shaft complete: #807136

E: Double cartridge positioning: #807131

F: Heating element 3x230V, 6kW: #805001A

G: Sensor tube, stainless steel: #807014

H: Digital temperature sensor
• For MAXX4 80xxxxxx, 81xxxxxx, 82xxxxxx : #804049
• For older models: #805022

I: Shaft for cartridge holder: #507105

INSIDE MAXX4 LID – EU TRIPLE PHASE

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Connector:
• For CE 80xxxxx, 81xxxxx, 82xxxxx, use for RJ10: #805023
• For older models, use for RJ11: #805021

B: PWM booster (400): #805010A

C: Socket for relay: #804035
• Relay, 24 VDC: #804047
• Diode module 6-24 VDC for relay: #804037

D: Resettable Fuse 6AC / 1P: #805045

E: Resettable fuse 3AC / 1P: #804046

F: Resettable fuse, 4AC/2P: #804031

G: Resettable fuse, 16A /3P: #804022

H: Switch element for neutral wire 63A /1P: #804057

I: Main switch 63A: #804028

J: PSU 24V/8.3A: #804044

K: Contactor 40AC1 / 3P 24VDC: #804048

L: USB internal to extend IP68 A-A: #804052

INSIDE MAXX4 LID – US SINGLE & TRIPLE PHASE

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Connector:
• For CE 80xxxxx, 81xxxxx, 82xxxxx, use for RJ10: #805023
• For older models, use for RJ11: #805021

B: PWM booster (400): #805010A

C: Socket for relay: #804035
• Relay, 24 VDC: #804047
• Diode module 6-24 VDC for relay: #804037

D: Resettable Fuse 6AC / 1P: #805045

E: Resettable fuse 3AC / 1P: #804046

F: Resettable fuse, 4AC / 2P: #804031

G: Resettable fuse, 40AC / 3P: #804030

H/I: Main switch 63A: #804028

J: PSU 24V/8.3A: #804044

K: Contactor 40AC1 / 3P 24VDC: #804048

L: USB internal to extend IP68 A-A: #804052

RIGHT SIDE

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Heat fuse 95C: #805003

B: Gear motor 24V / 37rpm: #805020B

C: Sensor, inductive: #805019

D: Arm for cartridge positioning: #807106

E: Heating element 3x230V, 6kW: #805001A

F: Fiber gasket for heating element: #807001

G: Bridge for heating element: #805002A

H: Digital temperature sensor, 400 cm RJ11: #805022

I: USB cable 0.5m A-A: #804051

INSIDE RIGHT SIDE

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Toothed Belt:
• 5M 25mm wide: #807027
   (Serial no: >80000036, >81000065 & 82xxxxxxx)
• 15mm wide: #807024
   (Serial no: 80000000-80000036 & 81000000-81000065)

B: Bearing complete: #803101

C: Spacer for shaft:
• 20×10.5×2.5: #807410
• 20×10.5×4.5: #807409
• 20×10.5×15: #807407

D: Toothed pulley:
• PGGT 20 SMR 15: #807021
   (Serial no: 8000000-80000036 & 81000000-81000065)
• 5M 21 teeth 25mm wide: #807026
   (Serial no: >80000036 >81000065 & 82xxxxxxx)
• 5M 21 teeth 15x12mm: #8070210
   (Only for machines with 15 gear when replacing motor
   to 805020B)

E: Key 3×3.7×9.66 for 807021: #807022

F: Toothed pulley:
• 34 teeth, 15 mm: #807019
   (Serial no: 80000000-80000036 & 81000000 -81000065)
• 5M, 36 teeth, 25 mm wide: #807025
   (Serial no: >80000036 >81000065 & 82xxxxxxx)

G: Taper Bushing 1008 10mm: #807020
(Serial no: 80000000-80000036 & 81000000 -81000065)

H: Key 3x3x20mm – for 807025: #807028
(Serial no: 80xxxxxx, 81xxxxxx & 82xxxxxx)

FRONT

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A1: Gas spring: #807016
A2: Eye for gas spring: #807017
A3: Bracket for gas spring: #807018

B: Hook grip for safety lock: #805016

C: Grounding cable: #805029

D: Rubber Seal – for Hatch & door – 2.3m: #807002A

E1: Controller 12-24 VDC: #804033
E2: Transfer Panel for MAXX4: #804042

F: Safety lock for hatch: #805015

G: Nut, 8mm, door: #802062

H: Main switch 63A: #804028

BACK

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Hinge for hatch: #807006

B: Handle for hatch: #807405

C: Hinge for door: #807007

LEFT SIDE

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Plug for magnetic valve 3/4″ 24VDC: #805018

B: Magnetic valve 3/4″ 24VDC: #805017

C: Heat fuse 95C: #805003

D: Digital temperature sensor, 400 cm RJ11: #805022

E: Bearing complete: #803101

F: Hose, 1″ for Drain, 1.4m: #807310

G: Hose connector 1″ ss304: #807312

H1: Heating element 3x230V, 6kW: #805001A
H2: Fiber gasket for heating element: #807001
H3: Bridge for heating element: #805002A

BOTTOM

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Hose connector 1″ ss304: #807312

B: Motor valve 1″, water out: #805009A

C: Cable for motor valve 1″, MAXX4: #805009B
